RAYMO 102series 0F PUSH PULL 9PIN CABLE CONNECTOR
Product Specifications
| Attribute |
Value |
| Type |
USB |
| Application |
Automotive |
| Gender |
Male |
| Pins |
9P |
| Product name |
Cable plug |
| Shell size |
102 series |
| Contacts |
9pin |
| Termination |
Solder type |
| Insulator material |
PPS |
| Shell material |
Brass, surface with chrome, black chrome plated |
| Certificate |
CE, ROHS, ISO9001 |
| IP rating |
IP68 |
Product Description
The RAYMO RM-F series circular PUSH PULL self-latching connector is compatible with original F series, featuring a compact body size, lightweight construction, and easy connection. Available in 102, 103, 1031, 104 and 105 size connectors for cables ranging from 1.4 mm to 9.9 mm with 1 to 19 contacts. Coaxial types also available.
Product Parameters
| Shell size |
Model |
Contacts |
Current(A) |
| 102(RAYMO 0F Series) |
S/SS/SFE/D/DEU/DEE/DBPU/DBPE/DBEU/DBEE/DBPLU/DBPLE/K/KE |
2.3.4.5.6.7.9 |
4 |
| 103(RAYMO 1F Series) |
S/SS/SFE/D/DEU/DEE/DBPU/DBPE/DBEU/DBEE/DBPLU/DBPLE/K/KE |
Coaxial, 2P, 3P, 4P, 5P, 6P, 7P, 8P, 10P, 12P, 14P, 16P |
6-10 |
| 1031(RAYMO AF Series) |
S/SS/SFE/D/DEU/DEE/DBPU/DBPE/DBEU/DBEE/DBPLU/DBPLE/K/KE |
10P, 12P, 15P, 16P |
7-15 |
| 104(RAYMO 2F Series) |
S/SS/SFE/D/DEU/DEE/DBPU/DBPE/DBEU/DBEE/DBPLU/DBPLE/K/KE |
2P, 3P, 4P, 5P, 6P, 7P, 8P, 10P, 12P, 14P, 16P, 19P |
7-20 |
Key Features
- Secure high performance push-pull self-locking system
- Multipole design for blind-mating
- 360° EMC shielded
- High pin density contributing to equipment miniaturization
- Robust and shock resistant designs
- Functional in wide temperature range from -50°C to +250°C
- Available solder, PCB and right angle PCB contact
Applications
Analyzers, Monitoring & Diagnostics
- Reliable connections for gathering data
- Sealed for wet applications
- Flexibility on glands and seals for demanding environments
- Stainless steel for best longevity and hot sterilization
Disposable Devices (sensors, catheters)
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Electrosurgical Devices
Mixed signal inserts, good RFI/EMI shield performance
Pacemakers and Hearing Devices
Small, lightweight, reliable connectors for external modules or battery packs
About RAYMO
Founded in 2010, we are a manufacturer specialized in manufacturing and exporting higher-quality precision connectors. We offer customers more than 10,000 combinations and continuously expand our product range based on customer specifications and re-engineering designs. Our products are distributed worldwide including Europe, Asia, the USA, Africa, the Middle East and Australia.
RAYMO aims to offer customers high quality products at competitive prices, helping them choose the most cost-effective solutions. We primarily supply:
- Push pull electrical connectors
- Medical connectors
- Camera connectors
- Waterproof/watertight connectors
- Quick release connectors
- Screw fixed connectors

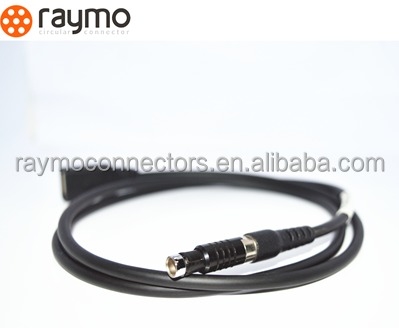

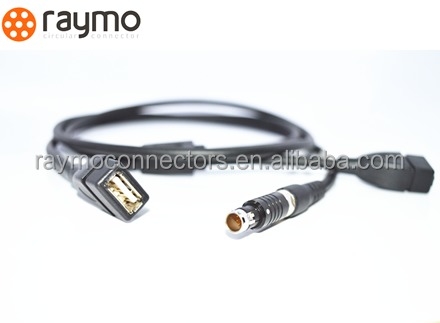

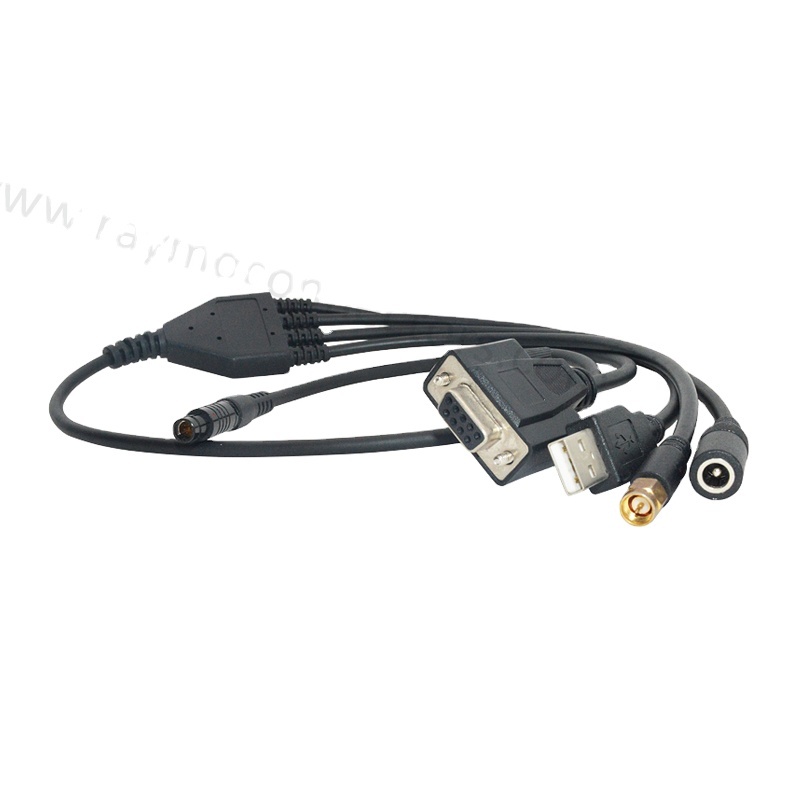

- Cable assemblies
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons. OEM&ODM is available after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% or Alibaba on-line order are both OK.
Q3. How about your delivery time?
A: Generally, it will take 5~7 working days after receiving your advance payment.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
