Αρχική Σελίδα ΠροϊόνταΚυκλικοί αντιφατικοί συνδετήρεςIP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder

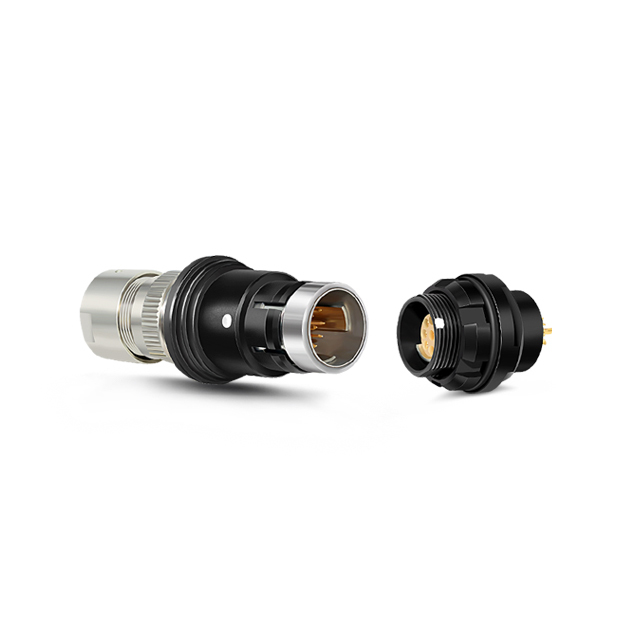

IP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder

IP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder
IP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder IP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder IP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder IP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder IP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder
Βασικές πληροφορίες
Place of Origin: Guangdong, China
Μάρκα: RAYMO
Model Number: RM-SS-AF1C-319JS- 62
Minimum Order Quantity: 10
Επικοινωνήστε
Type: Adapter Gender: Male
Shell model: SS short plug Housing Material: Brass with chrome plated
Shell size: 0F/102, 1F/103, AF/1031, 2F/104 Contact no.: 2, 3, 4, 5, 6, 7, 19pins
Connector type: solder contacts IP Ranking: IP68
Endurance: > 5000 cycles Shock resistance: 100 g, 6 ms
Humidity: up to 95% at 60° C Salt spray test: > 96h
Temperature range: -55° C, +250° C Vibration resistance: 10-2000 Hz, 15 g
Shielding efficiency: > 75 dB at 10 MHz, > 40 dB at 1 GHz
Επισημαίνω:

IP68 waterproof circular connector

,

19 pin male solder connector

,

SS 1031A019 circular push pull connector

Alternative Fischers Plug IP68 Waterpoof Circular Connector SS 1031A019 140+, 19 Way Connector, SS 1031
Product Specifications
Attribute Value
Type Adapter
Application Audio & Video
Gender Male
Shell model SS short plug
Housing Material Brass with chrome plated
Color Natural / Black chrome
Shell size 0F/102, 1F/103, AF/1031, 2F/104
Contact no. 2, 3, 4, 5, 6, 7,...,19 pins
Connector type Solder contacts
Cable assembled or not Yes
Certificate ISO9001/CE/ROHS/REACH
IP Ranking IP68
Product Details
RM-SS-AF1C-P19JS-062 = SS 1031 A019 - 130+
  • SS short plug, Key code 1, 1031 series, 19 pin, male solder contacts
  • Available in Natural or Black chrome-plated color housing
  • Shell size: AF/1031
  • Pins options: 10 pin, 12 pin, 15 pin, 19 pin
  • Certifications: CE, RoHS, ISO9001:2015
Technical Characteristics
Endurance
> 5000 cycles
Shock resistance
100 g, 6 ms
Humidity
up to 95% at 60°C
Salt spray corrosion test
> 96h
Temperature range
-55°C to +250°C
Protection index (mated)
IP68
Resistance to vibration
10-2000 Hz, 15 g
Climatical category
55/175/21
Shielding efficiency
at 10 MHz, > 75 dB
at 1 GHz, > 40 dB
Certifications
ISO9001/CE/ROHS/SGS
Product Images
IP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder 0
IP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder 1
IP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder 2
Applications

RAYMO's high quality connectors are found in a variety of challenging applications and environments including:

  • Automotive
  • Audio-video
  • Aviation
  • Communications
  • Industrial Control
  • Information Systems
  • Machines
  • Medical
  • Test and Measurement
  • Data Acquisition
  • Data Transfer Equipment
  • Module Power
  • Sensor Systems
  • Instrumentation
  • Analysis Applications
IP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder 3
IP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder 4
IP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder 5
Related Products
  • Mimi snap connector LEMOS B series, waterproof K series, half-moon S series, REDEL P series connectors
  • Circular Connector FISCHERS 102 103 1031 104 series connectors
  • Push Pull Connector HIROSE HR10A series connectors
  • Screw Connector Binders M16 682 420 series connectors
  • Ultimate waterproof circular connector RM-U series
  • Deepsea waterproof circular connector RM-V series

CABLE ASSEMBLY can be designed according to customer needs. Accept OEM orders.

Our Company

RAYMO is a manufacturer that:

  • Focuses on manufacturing & exporting metal and plastic circular push pull connectors and cable assemblies
  • Products are 100% compatible with original specifications
  • Product series include RM-B, RM-K, RM-S, RM-F, RM-E, RM-HR10A, RM-P, RM-M4, RM-M12, RM-M16, RM-U, RM-V BNC, B680, B423, 38999, 26482
  • Provides CO, Form A, Form E for customer clearance
  • Certified with CE, ROHS, ISO:90001-2015, SGS Audited manufacturer
  • All items tested to work normally after 5000 mating cycles
IP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder 6
Our Certifications
IP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder 7
Our Exhibition History

We are here!

  • 2014 4-11/15 HK Fair
  • 2014 10-11/15 HK Fair
  • 2015 10-2/7 ICEEB, Brasil
  • 2016 4-11/15 HK Fair
  • 2017 9-11/16 NAB Show, Netherlands
  • 2018 11-12/15 Electronic Munich, Germany Booth no is C6.337-2 Date: Nov.13-16th
IP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder 8
Packing & Delivery
Packing Method
  • 10 or 20 pcs in a PE bag
  • Cable assembly: one piece in one bag, then put them into carton
  • Every 50 or 100 pcs of connectors in a small box (size: 19cm × 15cm × 10cm)
IP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder 9
IP68 Waterproof Circular Connector SS 1031A019 19 Pin Male Solder 10
Shipping Terms

Loading Port: Shenzhen, China

  • 1~10pcs: 3~5 working days
  • 11~100pcs: 5~7 working days
  • 101~500pcs: 7~10 working days

Goods can be shipped by air shipping, sea and other methods. Delivery time depends on order quantity and exact items.

Frequently Asked Questions
Q1. What is your terms of packing?

A: Generally, we pack our goods in PE bag and brown cartons. OEM&ODM is available after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T 100% or Alibaba on-line order are both OK.

Q3. How about your delivery time?

A: Generally, it will take 5~7 working days after receiving your advance payment.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?

A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

If you couldn't find exact items you want, please email us exact models you need. Best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
