Prct Description Military ОНЦ-БС-1(2) ΣΥΝΔΕΣΜΟΙ:
ОНЦ-БС-1(2) Ο κυκλικός ηλεκτρικός σύνδεσμος της σειράς OHS, η μέθοδος σύνδεσης υιοθετεί σύνδεση μπαγιονέτ, η μορφή σύνδεσης του τμήματος επαφής είναι συγκολλημένη, το prct έχει τα χαρακτηριστικά της γρήγορης σύνδεσης και αποσύνδεσης, μικρό μέγεθος, υψηλή πυκνότητα, καλή αντοχή στο περιβάλλον, υψηλή αξιοπιστία, η υποδοχή χωρίς προσάρτημα ουράς, το βύσμα μπορεί να πάρει ίσιο πλαστικό προσάρτημα ουράς, κατάλληλο για κύκλωμα DC AC.
Ταυτόχρονα, μπορεί να ταιριάξει και να ανταλλάσσεται με τα αρχικά εξαρτήματα της ρωσικής σειράς ОНЦ-БС-1(2).
Соединители ОНЦ-БС-1(2), предназначены для работы в электрических цепях постоянного,
переменного (частотой до 3 МГц) и импульсного токов.
Соединители ОНЦ-БС-1(2) состоят из герметичной приборной вилки и негерметичной кабельной
розетки для объемного монтажа, имеют многошпоночную поляризацию корпусов, защищающую
от несанкционированного сочления.
Сочление соединителей – байонетное.
Вилки изготавливаются без кожуха, розетки с прямым пластмассовым кожухом.
Схемы расположения контактов, количество и диаметры контактов приведены в таблице 1.
Покрытие контактов в соединителях: ОНЦ-БС-1 - серебро, ОНЦ-БС-2 – золото.
Соединители изготавливаю для внутреннего монтажа во всеклиматическом исполнениев
соответствии с техническими условиями бР0.364.030 ТУ, (приемка “5”).
Military ОНЦ-БС-1(2) OHS CONNECTORS Features :
- Compact Size: Ideal for applications where space is limited.
- High Performance: Capable of handling high data rates and power levels despite its small size, making it suitable for a wide range of applications.
- Durable Construction: Constructed of high-quality materials to ensure long service life, even in harsh environments.
- Easy Installation: Enables quick and easy installation and disassembly, saving time and effort during assembly and maintenance.
Technical indicators for ОНЦ-БС-1(2) OHS CONNECTORS
| Indicator |
Value |
| Contact Resistance |
≤5mΩ |
| Insulation resistance |
≥1000MΩ (Under normal conditions) |
| Ambient temperature |
- 60°C~85°C |
| Vibration |
1-5000HZ 20g |
| Impact |
1000g(once);100g(multiple times); |
| Contact diameter |
Φ1.0mm |
| Mechanical Life |
Insert and unplug 250 times |
| Working hours |
5000 hours |
Working current, Operating voltage for ОНЦ-БС-1(2) OHS CONNECTORS
| Shell standard Size |
Contact Number |
Single contact working current (A) |
Total Current (A) |
Operating Voltage(V) |
| 10 |
4 |
3.7 |
15 |
250 |
| 12 |
7 |
3.1 |
22 |
250 |
| 14 |
10 |
3 |
30 |
250 |
| 18 |
19 |
2.1 |
40 |
250 |
| 22 |
32 |
1.8 |
60 |
250 |
| 27 |
50 |
1.5 |
75 |
250 |
Model description for ОНЦ-БС-1(2) OHS CONNECTORS
| OHS |
B |
C |
1(2) |
4(10) |
B(P) |
1(2) |
1(2,3) |
B |
| Circular |
Bayonet |
Ultra-small |
1 Silver-plating, 2 Gold-plating |
Contact number / Shell standard size |
B - Square Receptacle (pin), P - Circular plug (socket) |
1. Without tail attachment 2. With unshielded straight tail attachment |
Key position |
All weather |

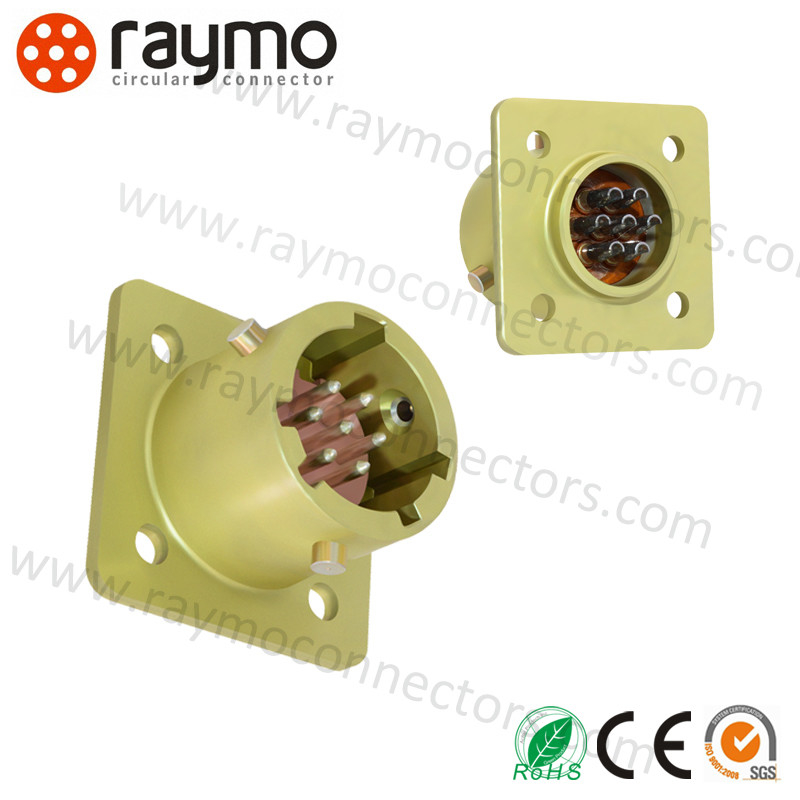

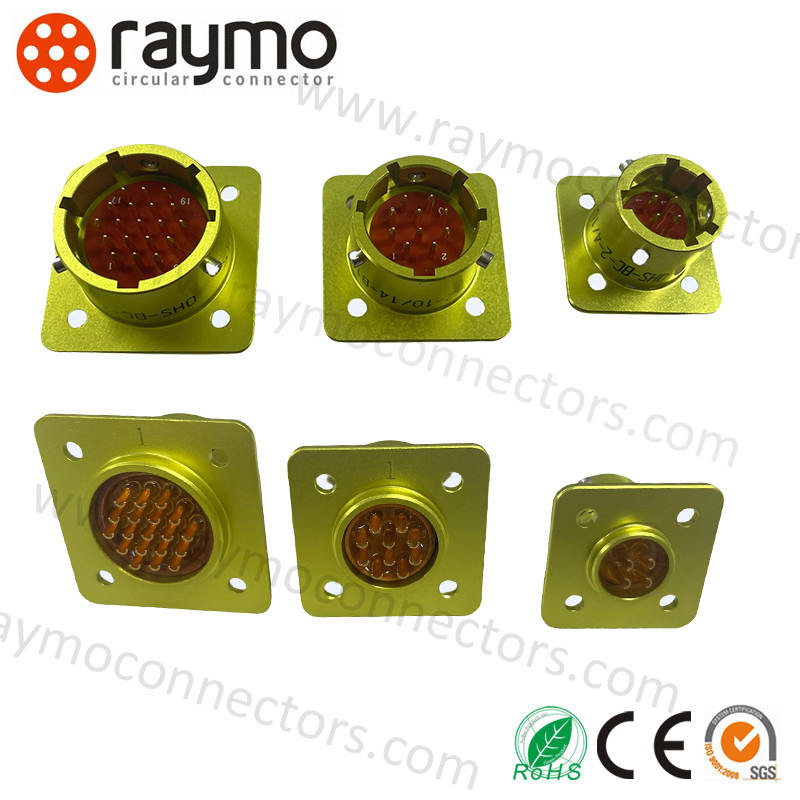

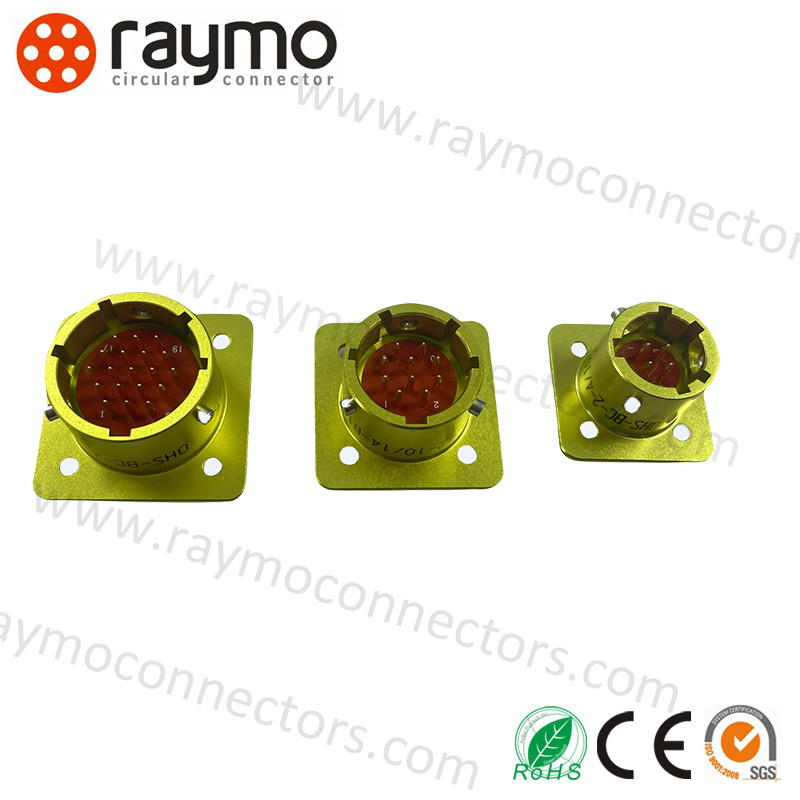

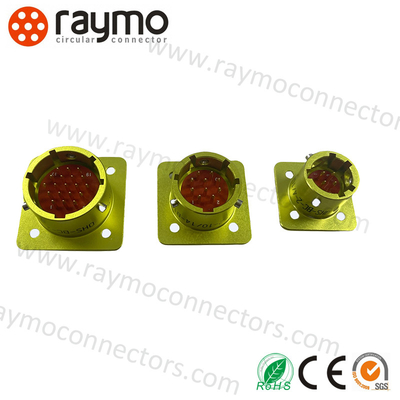

Type:1-Without tail attachment for ОНЦ-БС-1(2) OHS CONNECTORS
| Russian Part No. |
Chinese Part No. |
Amphenol Part No. |
| ОНЦ-БС-1-4/10-В1-1-В |
OHS-BC-1-4/10-B1-1-В |
ONTS-BS-1-4/10-V1-1-V |
| ОНЦ-БС-1-7/12-В1-1-В |
OHS-BC-1-7/12-B1-1-В |
ONTS-BS-1-7/12-V1-1-V |
| ОНЦ-БС-1-10/14-В1-1-В |
OHS-BC-1-10/14-B1-1-В |
ONTS-BS-1-10/14-V1-1-V |
| ОНЦ-БС-1-19/18-В1-1-В |
OHS-BC-1-19/18-B1-1-В |
ONTS-BS-1-19/18-V1-1-V |
| ОНЦ-БС-1-32/22-В1-1-В |
OHS-BC-1-32/22-B1-1-В |
ONTS-BS-1-32/22-V1-1-V |
| ОНЦ-БС-1-50/27-В1-1-В |
OHS-BC-1-50/27-B1-1-В |
ONTS-BS-1-50/27-V1-1-V |

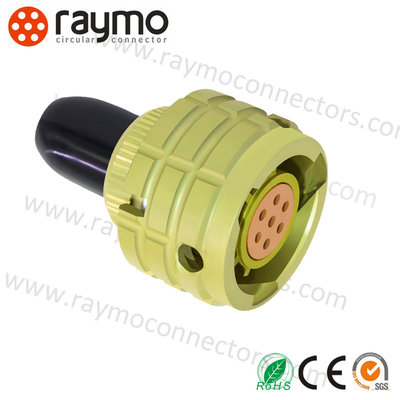

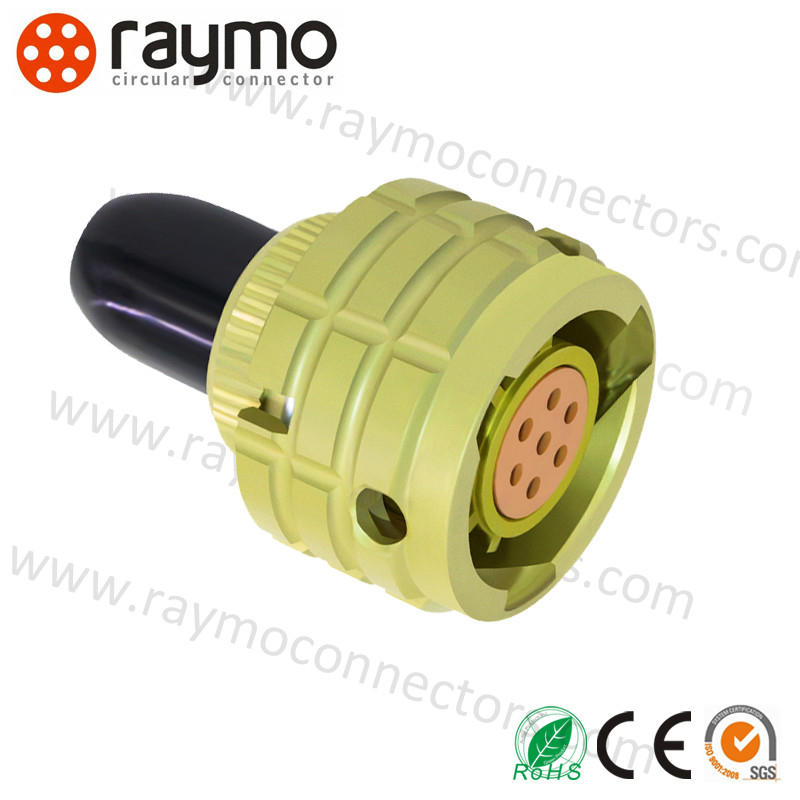

Type:2-With unshielded straight tail attachment for ОНЦ-БС-1(2) OHS CONNECTORS
| Russian Part No. |
Chinese Part No. |
Amphenol Part No. |
| ОНЦ-БС-1-4/10-Р12-1-В |
OHS-BC-1-4/10-P2-1-В |
ONTS-BS-1-4/10-R12-1-V |
| ОНЦ-БС-1-7/12-Р12-1-В |
OHS-BC-1-7/12-P2-1-В |
ONTS-BS-1-7/12-R12-1-V |
| ОНЦ-БС-1-10/14-Р12-1-В |
OHS-BC-1-10/14-P2-1-В |
ONTS-BS-1-10/14-R12-1-V |
| ОНЦ-БС-1-19/18-Р12-1-В |
OHS-BC-1-19/18-P2-1-В |
ONTS-BS-1-19/18-R12-1-V |
| ОНЦ-БС-1-32/22-Р12-1-В |
OHS-BC-1-32/22-P2-1-В |
ONTS-BS-1-32/22-R12-1-V |
| ОНЦ-БС-1-50/27-Р12-1-В |
OHS-BC-1-50/27-P2-1-В |
ONTS-BS-1-50/27-R12-1-V |
